Products

Product Range

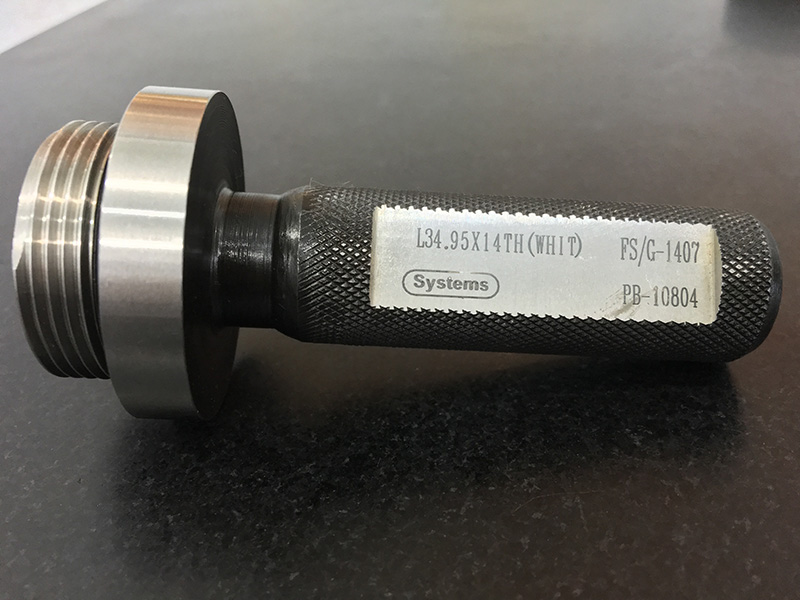

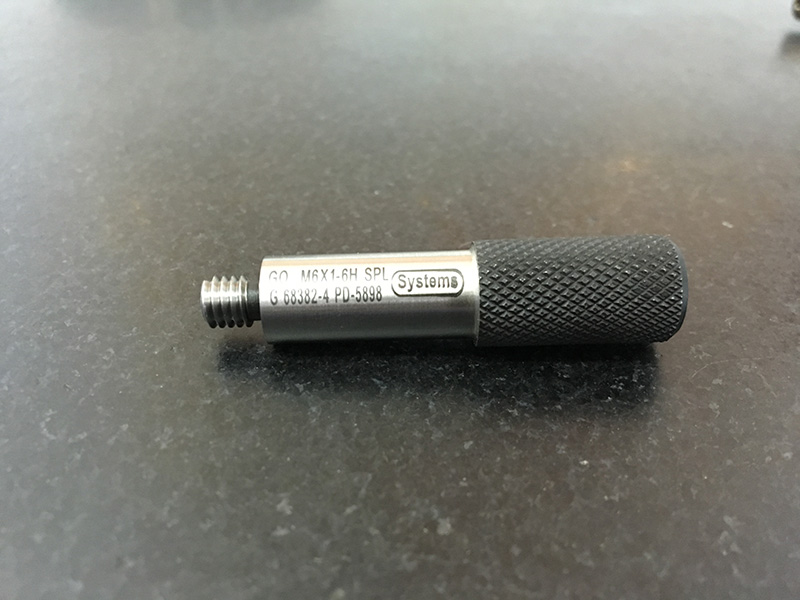

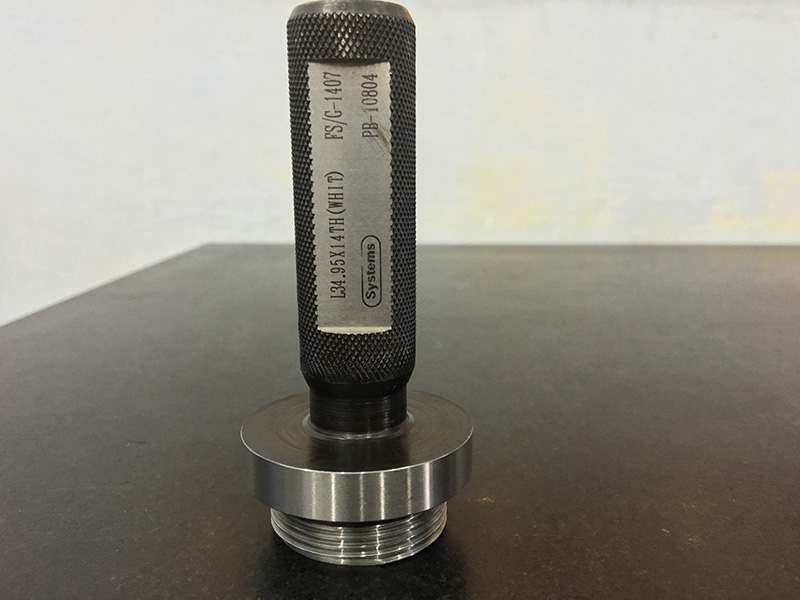

1. Thread plug gauges: 3mm to 270mm

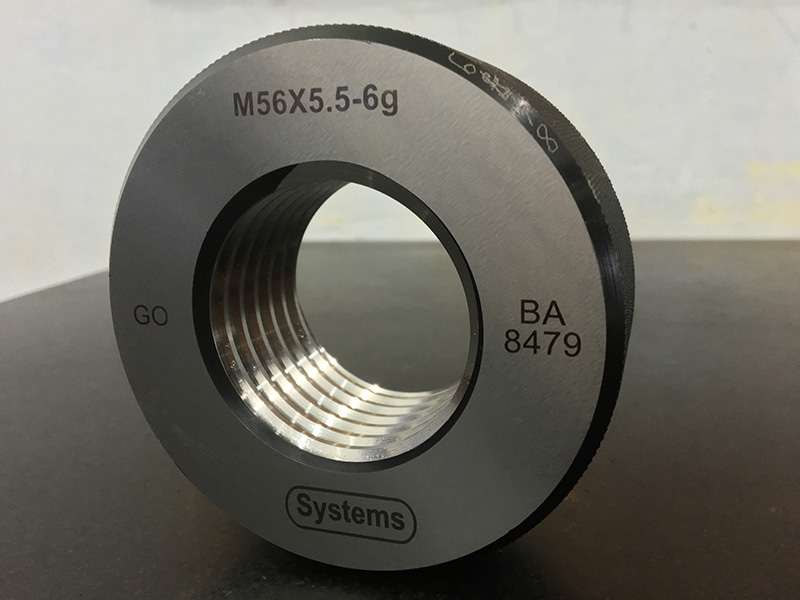

2. Thread ring gauges: 3mm to 250mm

3. Taper thread plug gauges : 1/8 inch – 8 inch(1:16 to 1:8 TAPER)

4. Taper thread ring gauges : 1/8 inch – 8 inch(1:16 to 1:8 TAPER)

Types of THREAD Gauges

1. ISO metric parallel thread gauges

2. Unified parallel thread gauges

3. ISO parallel pipe thread gauges (BSP)

4. NPT & ANPT taper thread gauges

5. NPTF taper thread gauges

6. BSPT taper thread gauges

7. ACME, TRAPEZOIDAL, BUTTRESS as per customer’s requirement.

8. BS Cycle thread gauges

9. Squareness checking of face & concentricity of ID withrespect to threading as per customer’s requirement.
10. WORKING API as per LINE PIPE 5B.
11. Square Threads
12. Round Threads

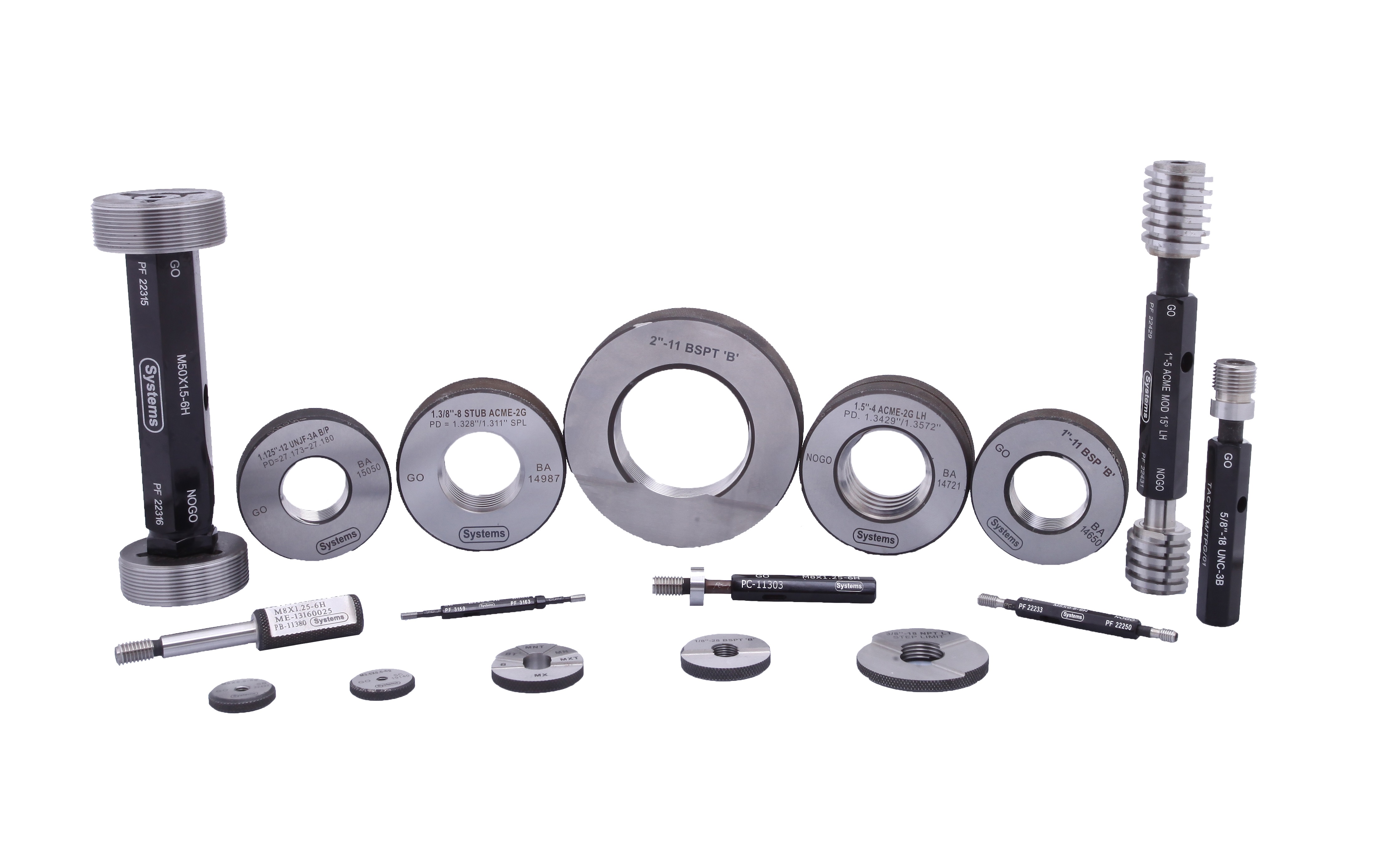

Products Overview

NOTE :-

While sending the enquiry, please ensure that it includes the following-

Nominal diameter, Pitch/T.P.I & class of fit. If class of fit is not known, please mention the pitch diameter of component.
For unified gauges, clearly mention the standard whether AMERICAN or BRITISH.
For N.P.T gauges, mention “Basic” or ‘Step Limit” like L1 type.
For N.P.T.F gauges, mention “Basic” or ‘Step Limit” & type like L1, L2 or L3.
